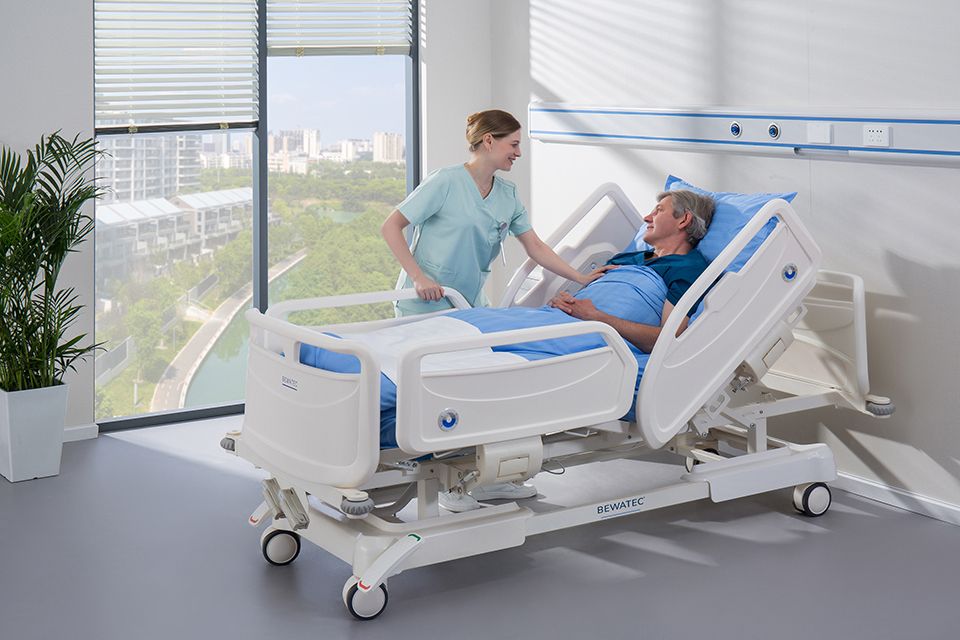

Two-function manual bed with HDPE siderails ( Iaso Series)
Product Features

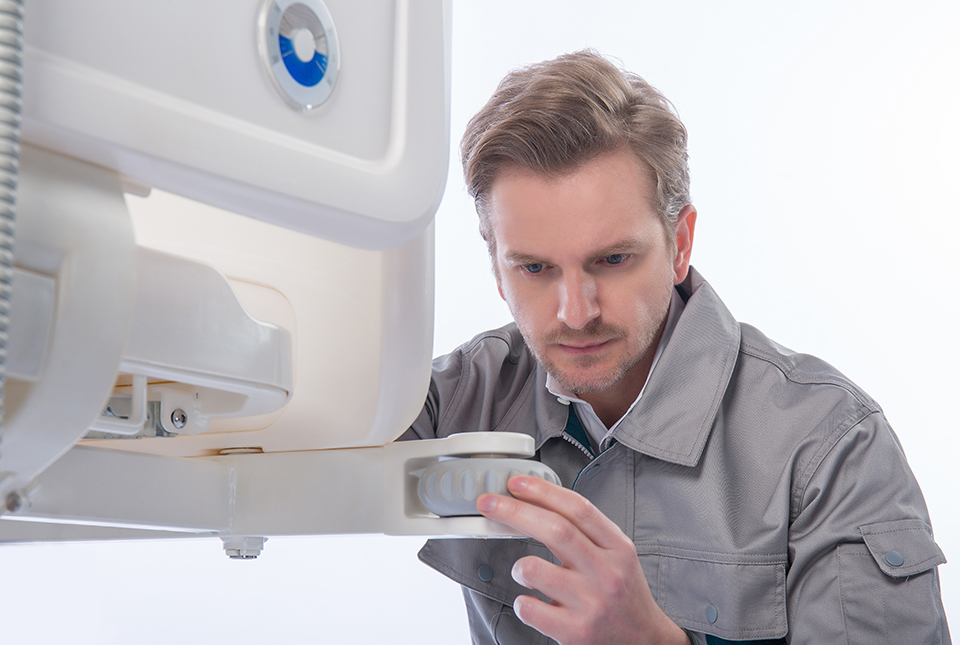

The four corners are equipped with bumper wheels, which is a second-layer protection that effectively prevents bumping between the bed and obstacles serving as a smooth transition.

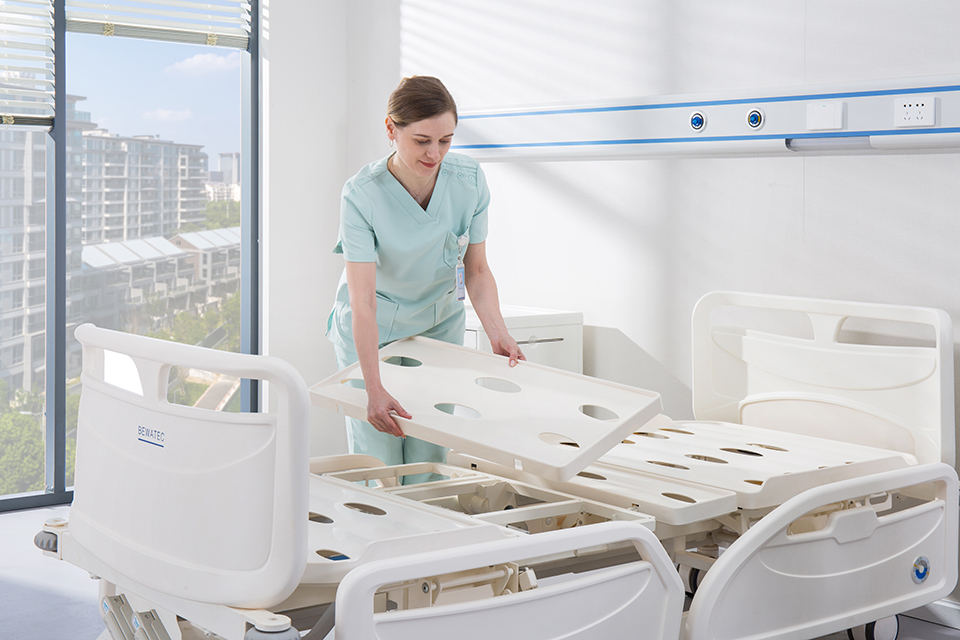

Four pieces of disassemblable guardrails forming a full protective enclosure; made out of HDPE aseptic material, the structure is not prone to soil and easy to clean and maintain.
Four pieces of disassemblable guardrails forming a full protective enclosure; made out of HDPE aseptic material, the structure is not prone to soil and easy to clean and maintain.
The surface of the bed is made of antibacterial material with sanitized hygienic function, preventing the growth of bacteria and effectively keeping infection under control.

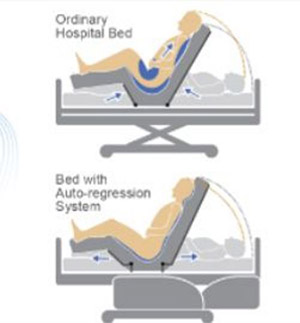

Back bed board is retractable, which reduces the friction between the patient’s skin and the mattress, preventing bedsores and making sitting on the bed comfortable.

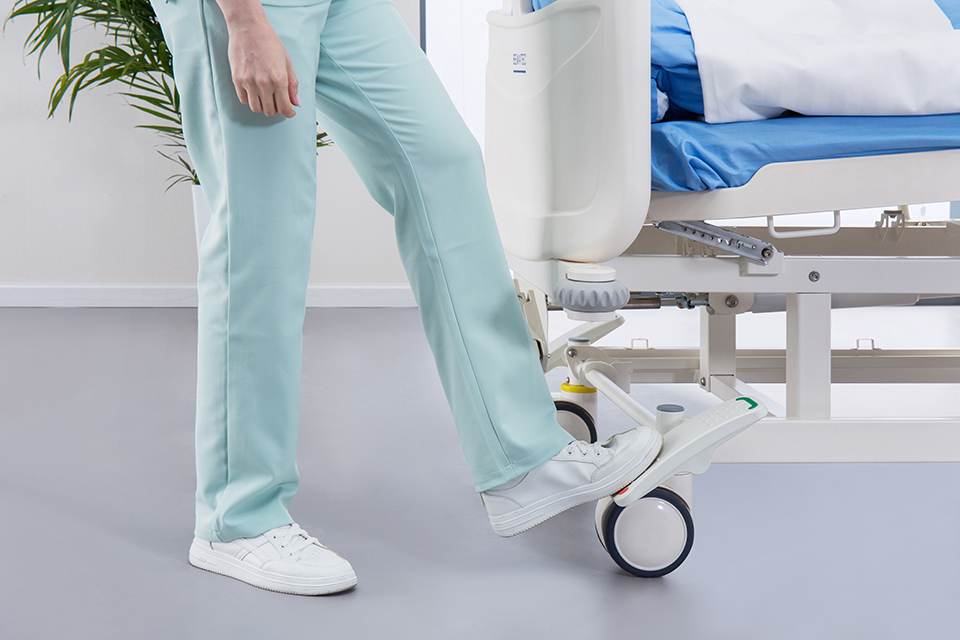

Double-sided central controlled casters, silent and wear-resistant, hard and light in texture, with brakes centralized controlled with one foot operation. Since both sides of the wheels are on the floor, the braking is stable and reliable.

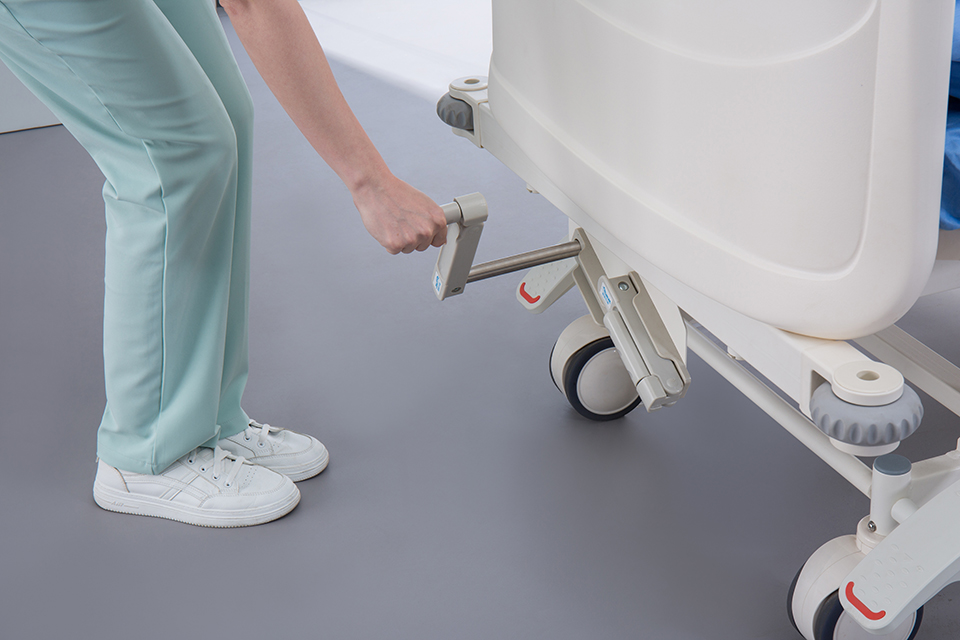

Extended ABS hand crank, with bumper design, sturdy and durable, with interference protection, two-way position limit, flexible and silent cranking operation.
Product Functions
i. Back Up/Down
ii.Leg Up/Down
Product Parameter
|
Bed width |
850mm |
|
Bed length |
1950mm |
|
Full width |
1020mm |
|
Full length |
2190mm |
|
Back tilt angle |
0-70°±5° |
|
Knee tilt angle |
0-40°±5° |
|
Safe working load |
170KG |
Configuration Details
|
Type |
Y022-1 |
|
Head Panel & Foot Panel |
HDPE |
|
Lying Surface |
Metal |
|
Siderail |
HDPE |
|
Caster |
Double-sided Central Control |
|
Auto-regression |
● |
|
Drainage hook |
● |
|
Drip Stand Holder |
● |
|
Mattress Retainer |
● |
|
Storage Basket |
● |
|
WIFI+Bluetooth |
● |
|
Digitalized Module |
● |
|
Table |
Telescopic Dining Table |
|
Mattress |
Foam Mattress |
