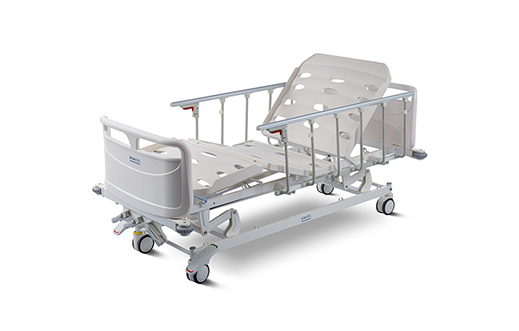

Three-function manual bed with six-column siderails
Product Features

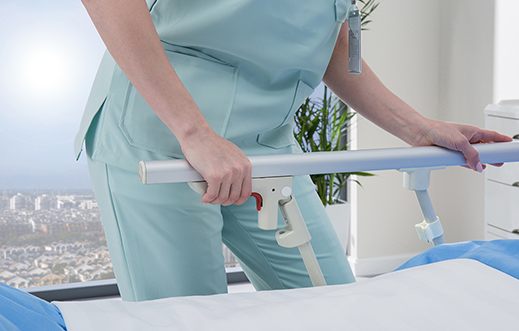

1.Foldable aluminum alloy guardrails, smoothly operated, without any dead corners for cleaning, easy to maintain.
2.The four corners are equipped with double-layer bumper wheels, which provides one more layer of protection and care.

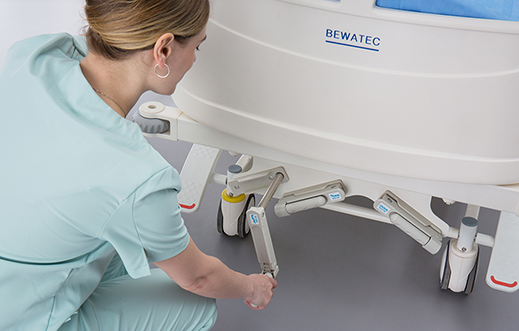

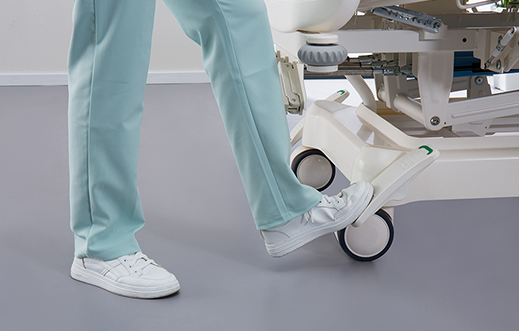

3.Centralized controlled locking system, with more stable and reliable double-sided brakes.
4.Integrated safety protection system, designed to be concealed, avoiding accidental injuries.

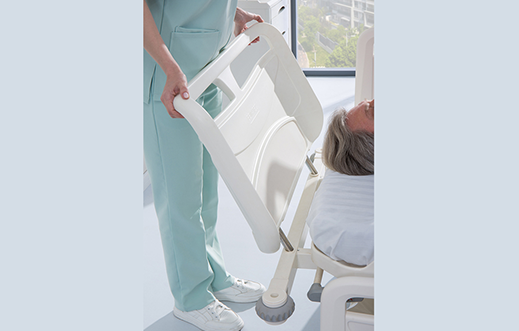

5.The streamlined design makes head and tail boards not easy to deform, and the boards can be quickly disassembled to speed up the first-aids.
6.Sanitized antibacterial materials are used in the bed to reduce the risk of bacterial infection.

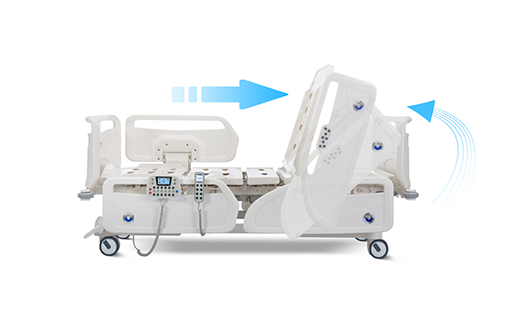

7.Back bed board is retractable, which prevents bedsores and making sitting on the bed comfortable.
8.Supporting upgrade of monitoring module for digitalized sensor.
Product Functions
– Back Up/Down
– Leg Up/Down
– Bed Up/Down
Product Parameter
|
Bed width |
850mm |
|
Bed length |
1950mm |
|
Full width |
1020mm |
|
Full length |
2190mm |
|
Back tilt angle |
0-70°±5° |
|
Knee tilt angle |
0-40°±5° |
|
Height adjustment range |
450～750mm |
|
Safe working load |
170KG |
Configuration Details
|
Type |
Y112-2 |
|
Head Panel & Foot Panel |
HDPE |
|
Lying Surface |
Metal |
|
Siderail |
Curved Tube |
|
Caster |
Double-sided Central Control |
|
Auto-regression |
● |
|
Drainage hook |
● |
|
Drip Stand Holder |
● |
|
Mattress Retainer |
● |
|
Storage Basket |
● |
|
WIFI+Bluetooth |
● |
|
Digitalized Module |
● |
|
Table |
Telescopic Dining Table |
|
Mattress |
Foam Mattress |
