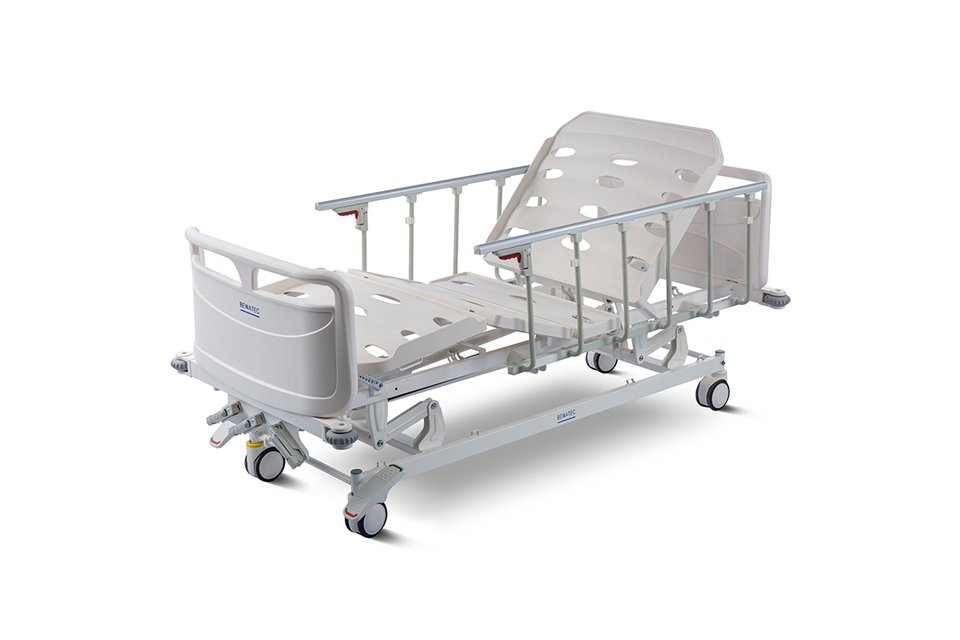

Three-function manual bed with HDPE siderails ( Iaso Series)
Product Features

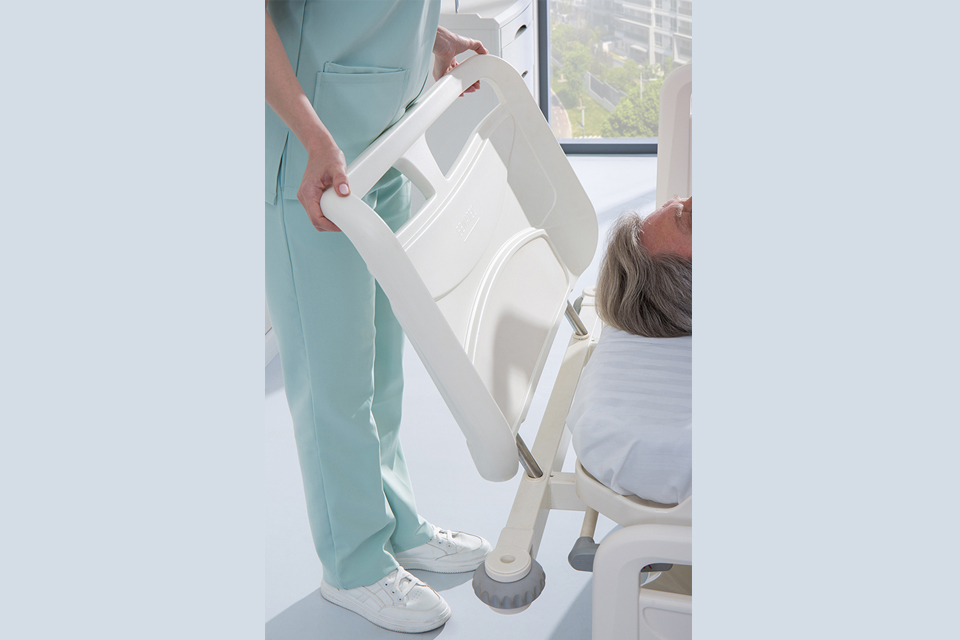

Four disassemblable guardrails provide full-enclosed protection, and a safety switch is set outside which avoids the risk of falling from the bed caused by misoperation.
The head and tail boards are molded with antibacterial and environmentally friendly HDPE material, with a smooth surface, easy to clean, and impact resistance.

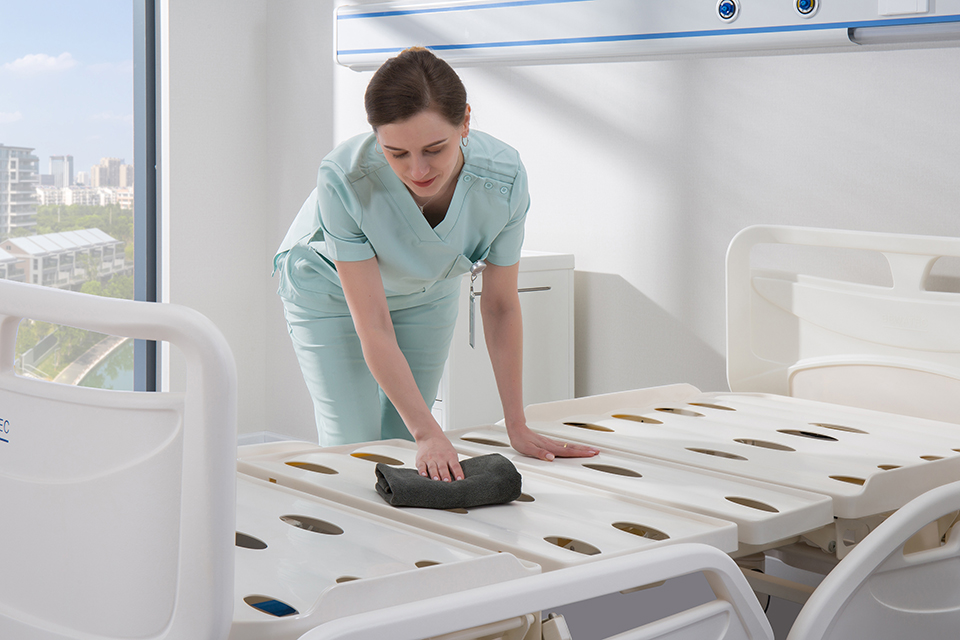

The four corners of the bed board are smooth and blur free, making it easy to maintain and clean; the bed board is equipped with an anti-pinch design that prevents accidents during use.

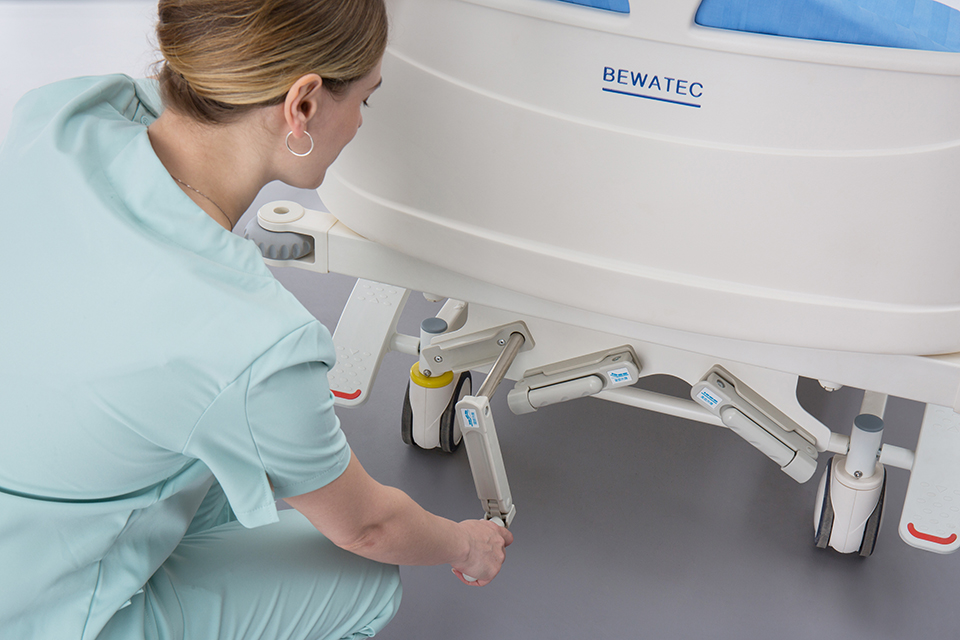

Extended ABS hand crank, designed to be concealed in storage, preventing pinch and bumping. It is durable and easy for operation, allowing for flexible ascending/descending.

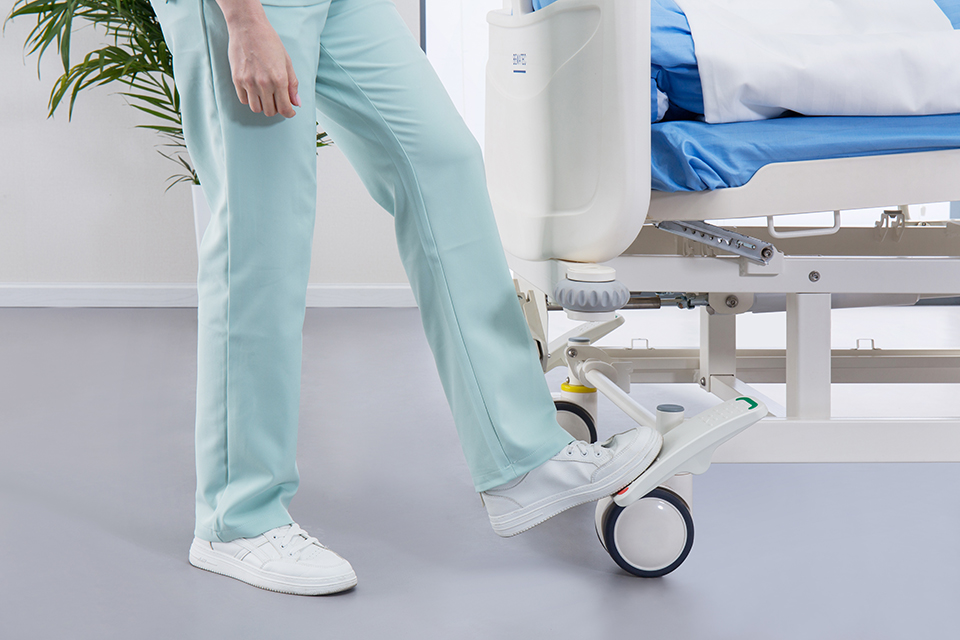

Double-sided central controlled casters made out of TPR wear-resistant materials, hard and light in texture, with brakes centralized controlled with one foot operation. Since both sides of the wheels are on the floor, the braking is stable and reliable.
Automatic retraction structure effectively prevents the occurrence of bedsores and makes the patient on the bed more comfortable.
Supporting upgrade of monitoring module for digitalized sensor.
Product Functions
vii. Back Up/Down
viii. Leg Up/Down
ix. Bed Up/Down
Product Parameter
|
Bed width |
850mm |
|
Bed length |
1950mm |
|
Full width |
1020mm |
|
Full length |
2190mm |
|
Back tilt angle |
0-70°±5° |
|
Knee tilt angle |
0-40°±5° |
|
Height adjustment range |
450～750mm |
|
Safe working load |
170KG |
Configuration Details
|
Type |
Y122-2 |
|
Head Panel & Foot Panel |
HDPE |
|
Lying Surface |
Metal |
|
Siderail |
HDPE |
|
Caster |
Double-sided Central Control |
|
Auto-regression |
● |
|
Drainage hook |
● |
|
Drip Stand Holder |
● |
|
Mattress Retainer |
● |
|
Storage Basket |
● |
|
WIFI+Bluetooth |
● |
|
Digitalized Module |
● |
|
Table |
Telescopic Dining Table |
|
Mattress |
Foam Mattress |
