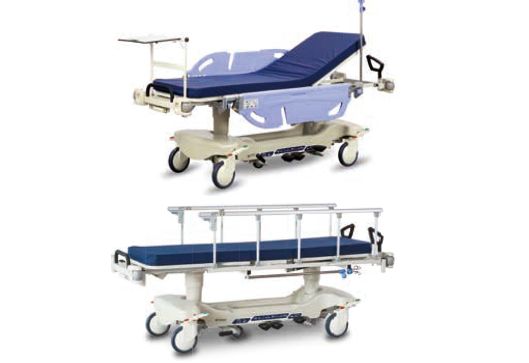

M2 Hydraulic Transfer Bed (Machaon Series)
Product Features

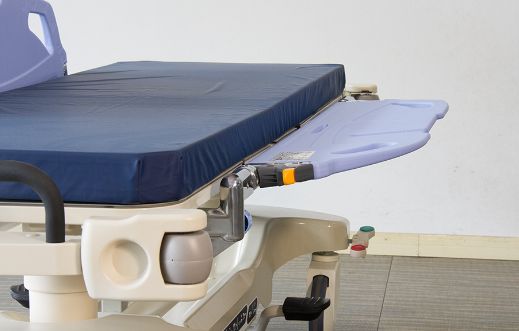

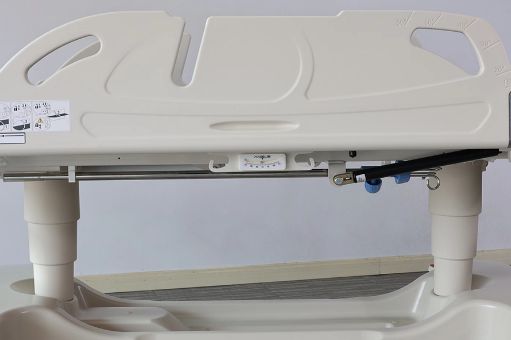

Rotating Side Rails: Side rails can be fixed at a horizontal position for drip and puncture. Loading capacity 10kg.Concave design can prevent catheter slide.
IV Pole: IV Pole can be placed around the bed, which can be stored under the bed when not in use, easy to use.

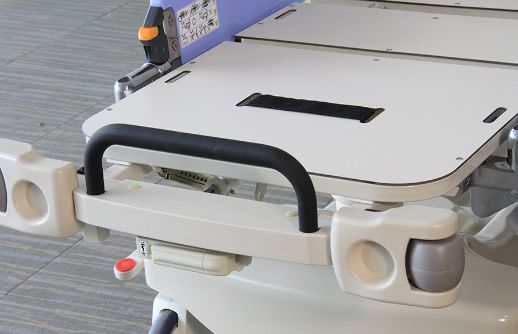

Push Handle: The push handle with head side P-Shape and foot side U-shape is adopted. Ergonomic design, easier to push.

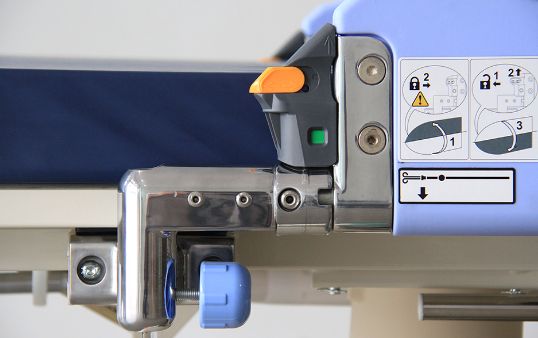

Double Locks Of Side Rails: Double lock on the foot side, prevent wrong operation, more safe.
Mattress: Using 70mm thick sponge to make patient more comfortable. Fabric is waterproof and breathable.

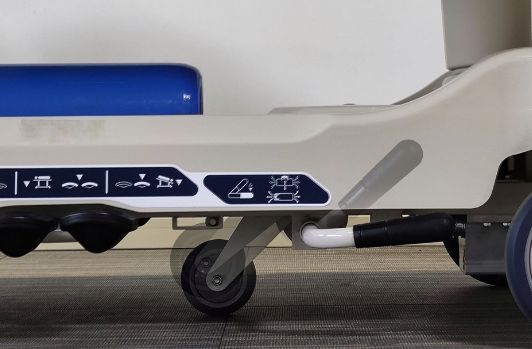

Fifth Round Center: The conversion of stretcher cart is easily realized between “straight” and “free” by operating the lever. Easier to control the direction with “straight”.

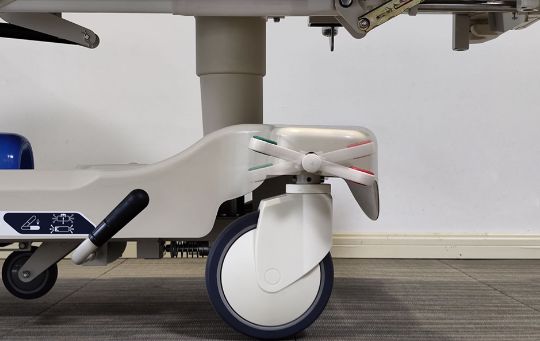

Silent Casters With Central Lock: 200mm diameter resin casters with lock pedal on four Corners, easy for nurse to operate.

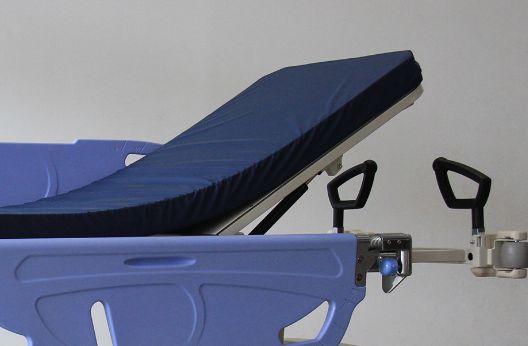

Multifunctional Demonstration: Using hydraulic cylinder and high-low hand crank and Self-pull rod. Operate the control handle at the back to control the silent gas spring to realize the lifting of the back plate. Cardiac Chair Position
Blue emergency bed/foldable guardrail emergency bed/recording table (optional)
Product Functions
i. Back Up/Down
ii. Leg Up/Down
iii. Bed Up/Down

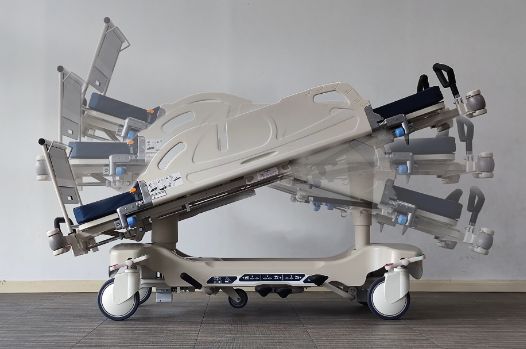

iv. Tilt Adjustment
Product Parameter
|
Full width |
830±20mm |
|
Full length |
2150±20mm |
|
Side rail height |
300±20mm |
|
Back tilt angle |
0-70°（±5°） |
|
Knee tilt angle |
0-40°（±5°） |
|
Tilt adjustment range |
-18°-18°（±5°） |
|
Height adjustment range |
560-890mm(±20mm) |
|
Safe working load |
170KG |
Configuration Details
|
Type |
CO-M-M1-E1-Ⅱ-2 |
|
Bed board |
Compact |
|
Frame |
Aluminum Alloys |
|
Caster |
Double-sided Central Control |
|
Base cover |
● |
|
IV pole |
● |
|
Oxygen cylinder storage rack |
● |
|
Moveable Mattress |
● |
