A5 Electric Medical Bed (Five-function & weighing module) Aceso Series
Product Features

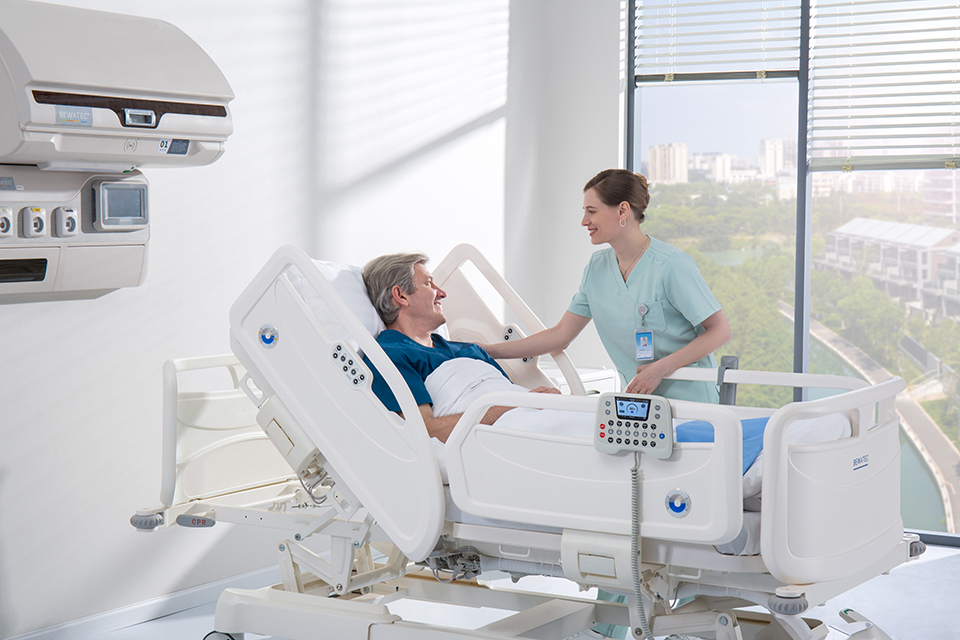

Four pieces of disassemblable guardrails, forming a full enclosure that give patients the greatest protection without a sense of confinement.

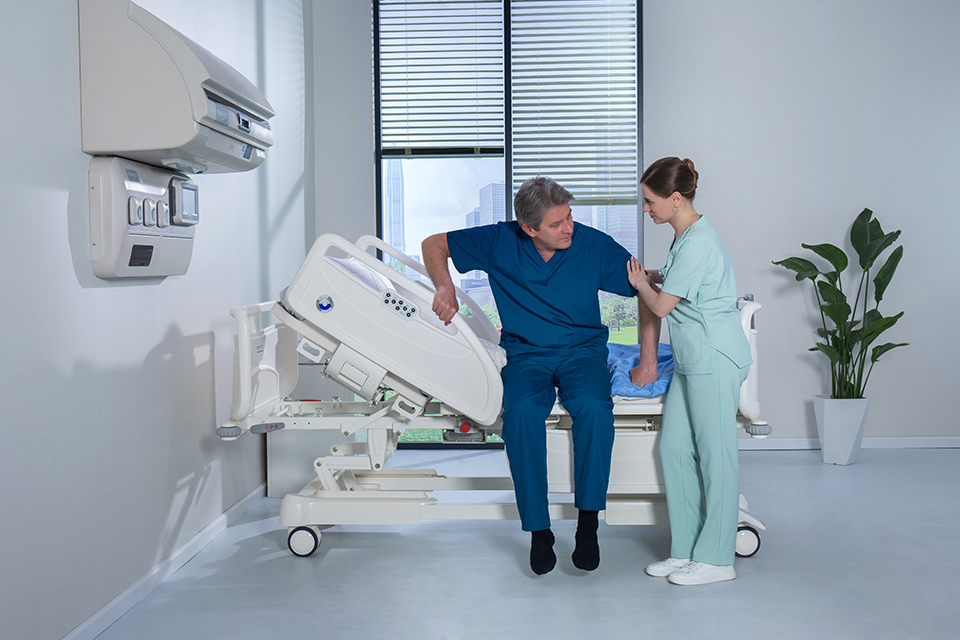

Built-in handles within the handrail facilitating getting out of bed, ergonomically designed to provide stable support for patients getting on and off the bed.

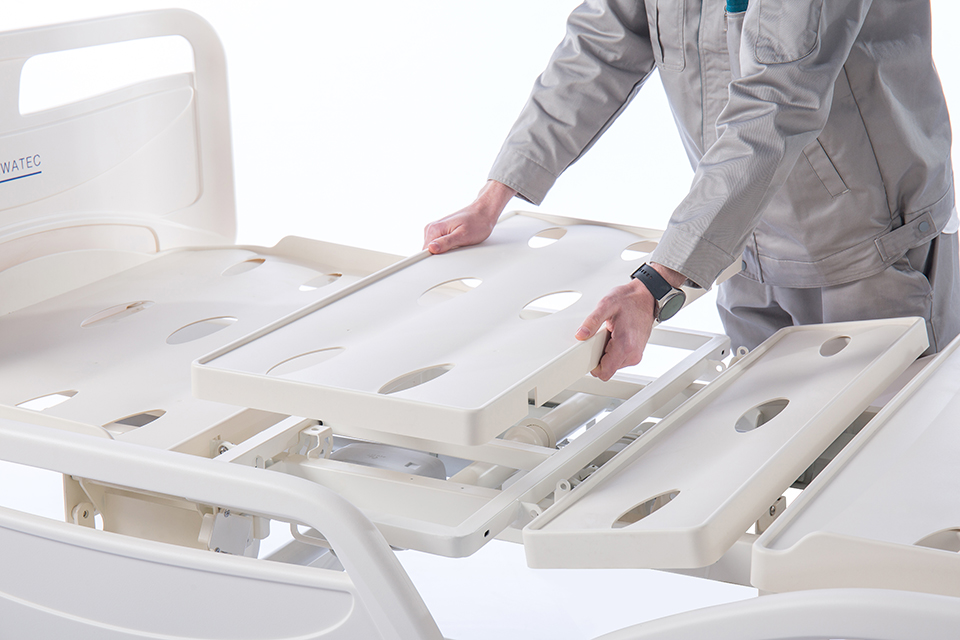

Water ripple detachable bed panel, non-slip and breathable, without dead corners in cleaning, making maintenance easy
Smart LED improves visibility at night, guiding patients to get in and out of bed, and ensuring the safety.
Multi-directional electronically controlled operating system, with German designed silenced motor, providing all-round detailed support for doctors, nurses and patients.
Advanced precise weighing system guiding patients in medication and control of body fluid balance.

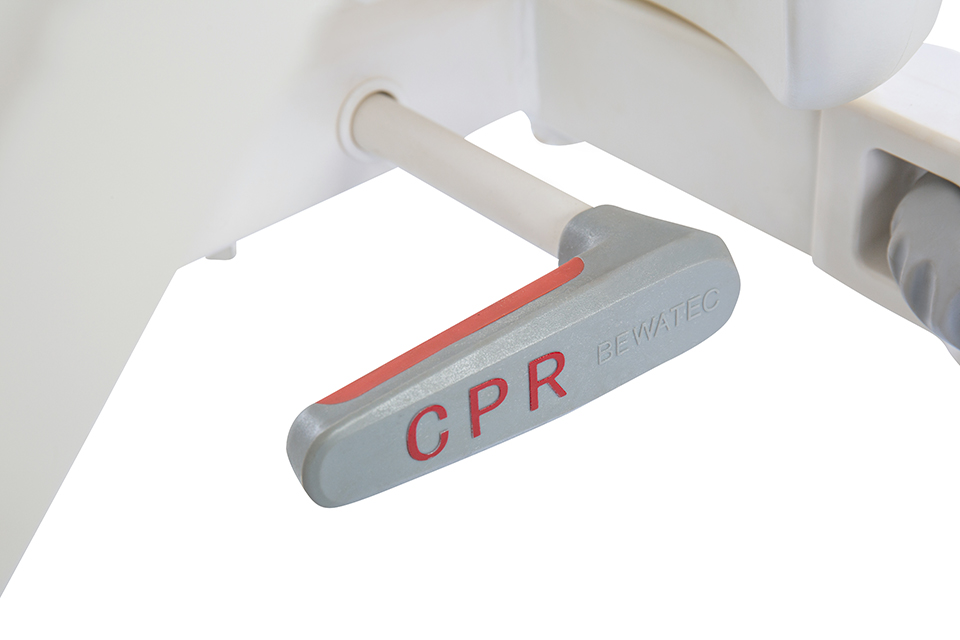

One-button CPR, full reset within 10s, giving patients the greatest help in first aid.

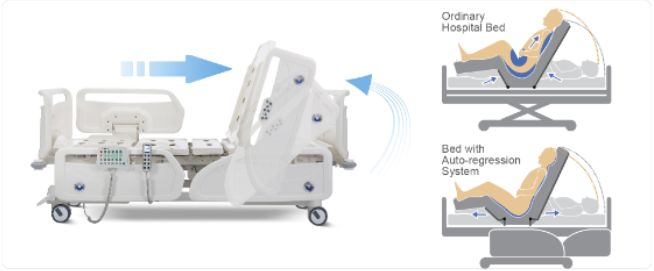

Back retraction system automatically extends the bed panel where the patient’ pelvis is, which greatly reduces the pressure on the patient’s tissues.

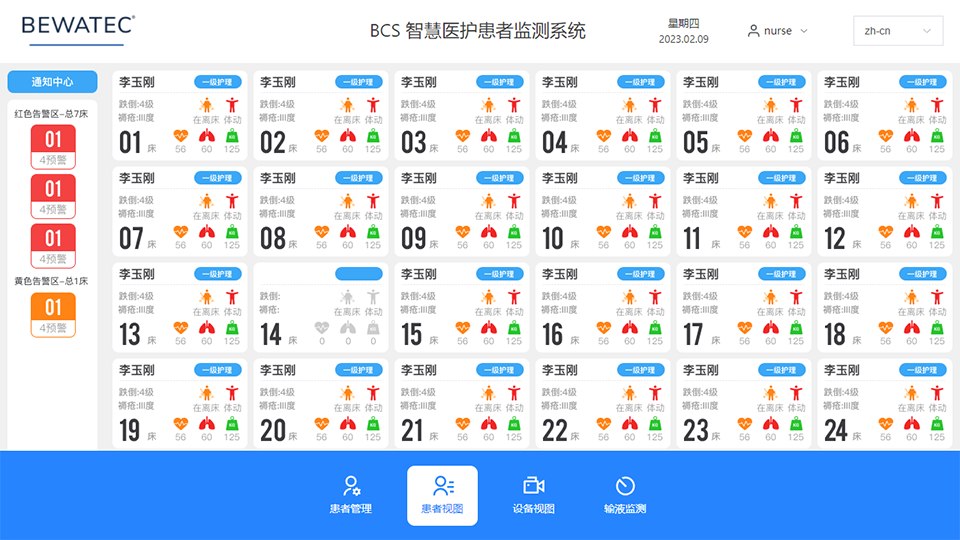

Digitalized sensing module performs real-time monitoring of patient’s occupancy of the bed, bed status, brakes, and sidebar status, and provides alarm analysis and an integrated finely managed smart ward.
Product Functions
i.Back Up/Down
ii. Leg Up/Down
iii. Bed Up/Down
iv. Tredelenburg Position
v. Reverse-tredelenburg Position
vi. Shock Position
vii. Cardiogical Chair Position
viii. Weighing System
ix.CPR Electric CPR/ Mechanical CPR
x. Quick-stop Function
Color Selection
Head panel and foot panel have variety of color choices.
Product Parameter
|
Bed width |
850mm |
|
Bed length |
1950mm |
|
Full width |
1020mm |
|
Full length |
2190mm |
|

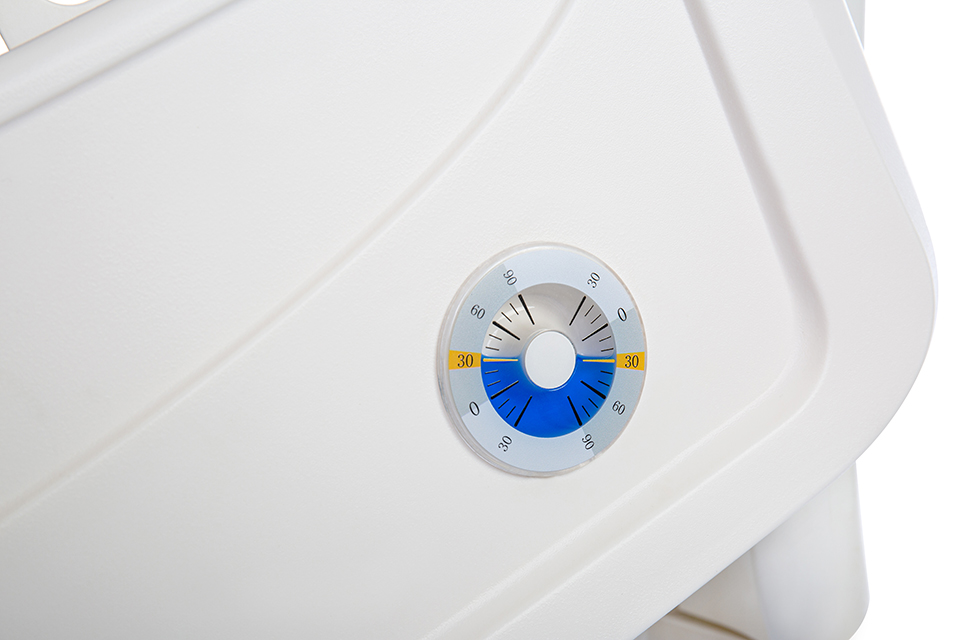

Back tilt angle |
0-70°±8° |
|
Knee tilt angle |
0-30°±8° |
|
Height adjustment range |
470~870mm±20mm |
|
Tilt adjustment range |
-12°～12°±2° |
|
Weighing accuracy |
Weighing accuracy≤0.1kg, range 0~200kg |
|
Safe working load |
220KG |
Configuration Details
|
Type |
A52W2-1 |
A52W2-2 |
A52W2-3 |
|
Head Panel & Foot Panel |
HDPE |
HDPE |
HDPE |
|
Lying Surface |
ABS |
ABS |
ABS |
|
Siderail |
HDPE |
HDPE |
HDPE |
|
Auto-regression |
● |
● |
● |
|
Mechanical CPR |
● |
● |
● |
|
Drainage Hook |
● |
● |
● |
|
Drip Stand Holder |
● |
● |
● |
|
Bondage Ring/Plate |
● |
● |
● |
|
Mattress Retainer |
● |
● |
● |
|
Frame Cover |
● |
● |
● |
|
Built in Side Rail controller |
○ |
● |
● |
|
Nurse Panel |
● |
● |
● |
|
Underbed Light |
● |
● |
● |
|
Digitalized Module |
● |
● |
● |
|
Networking |
● |
● |
● |
|
3 Mode Bed Exit Alarm |
● |
● |
● |
|
Caster |
Double-sided Central Control |
Double-sided Central Control(with Electricity Caster) |
Double-sided Central Control(with Electricity Caster) |
|

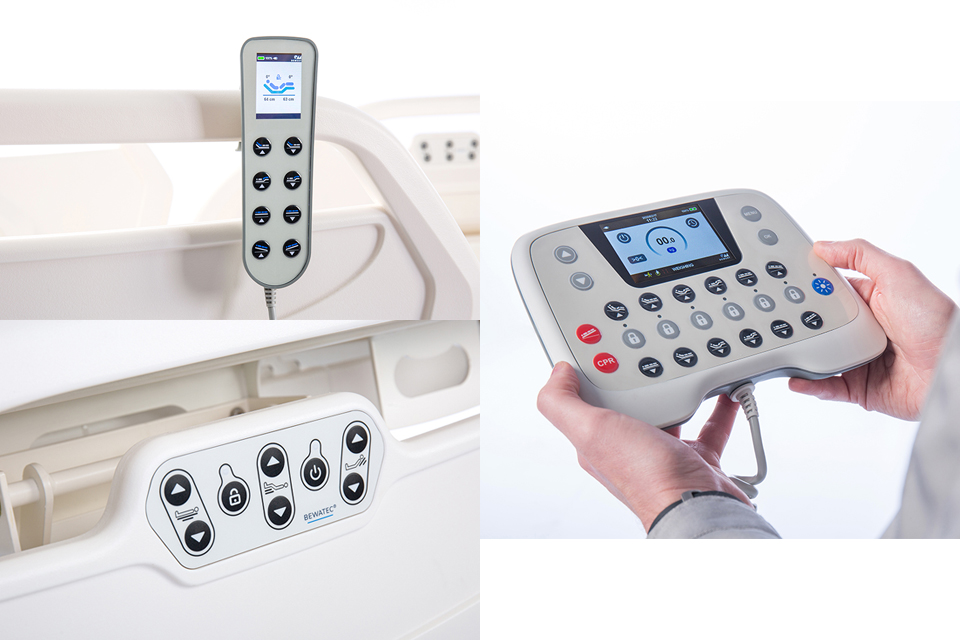

Hand Controller |
Button |
Silicone Button |
LCD Button |
|
Xray |
Optional |
Optional |
Optional |
|
Extension |
Optional |
Optional |
Optional |
|
Fifth Wheel |
Optional |
Optional |
Optional |
|
Table |
Over Bed Table |
Over Bed Table |
Over Bed Table |
|
Mattress |
TPU Foam Mattress |
TPU Foam Mattress |
TPU Foam Mattress |
