A5 Electric Medical Bed (Five-function) Aceso Series

Short Description:

Designed for high-end wards, it contains a series of unique and revolutionary features providing great support for patients’ vital signs and minimizing the hazards for their health.

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Product Features

A5 Electric Medical Bed（Five-function） (2)

Four pieces of disassemblable guardrails, forming a full enclosure that give patients the greatest protection without a sense of confinement.

The head and tail panels and guardrails are made of HDPE, which is anti-oxidative, antibacterial, and meets hospitals’ requirements on infection control.

A5 Electric Medical Bed（Five-function） (3)

A5 Electric Medical Bed（Five-function） (4)

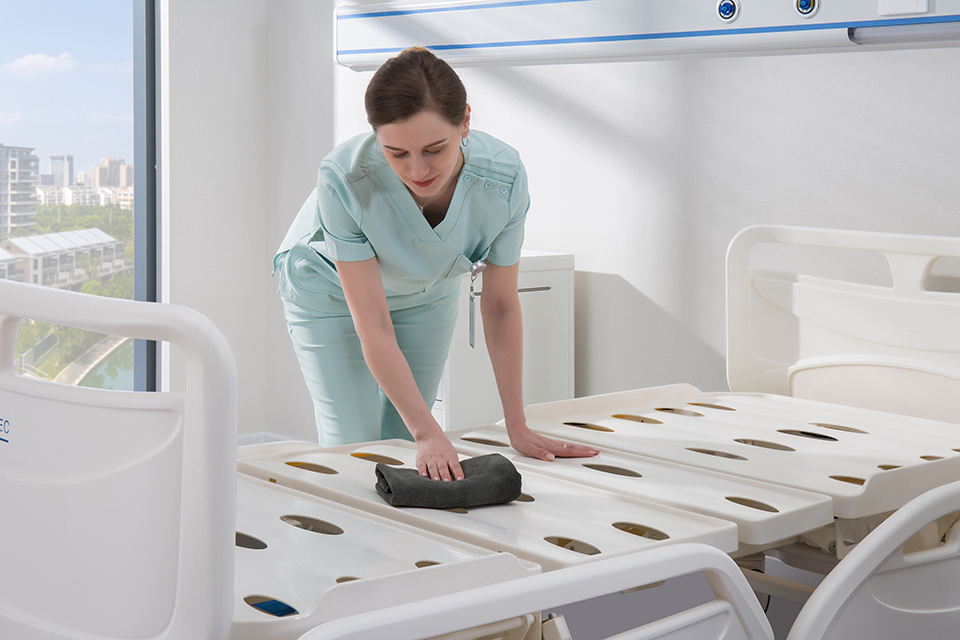

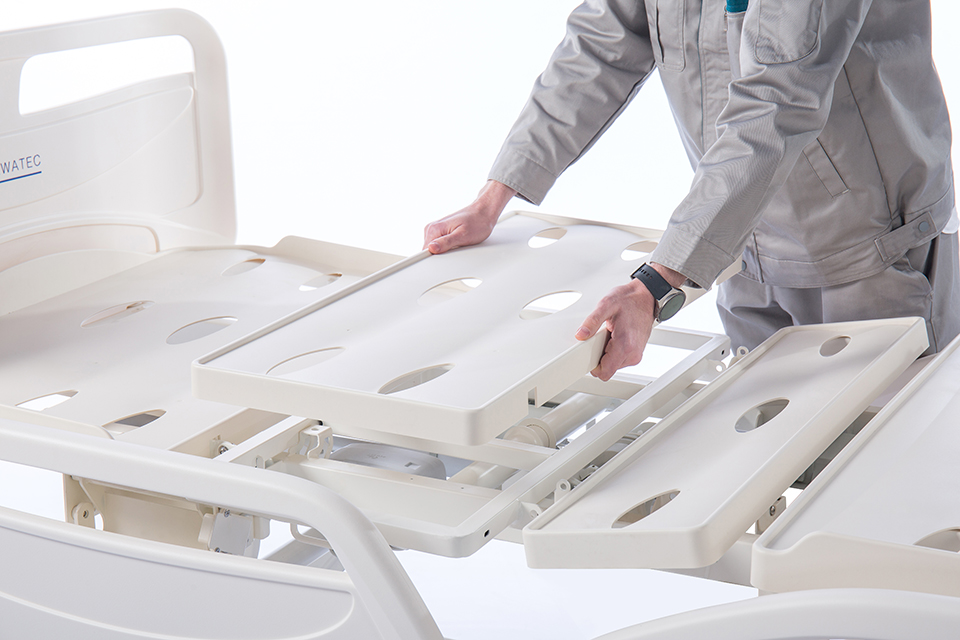

Detachable water corrugated bed boards, sizes of which in line with ergonomics, seamless design, non-slip and breathable, no dead ends for cleaning.

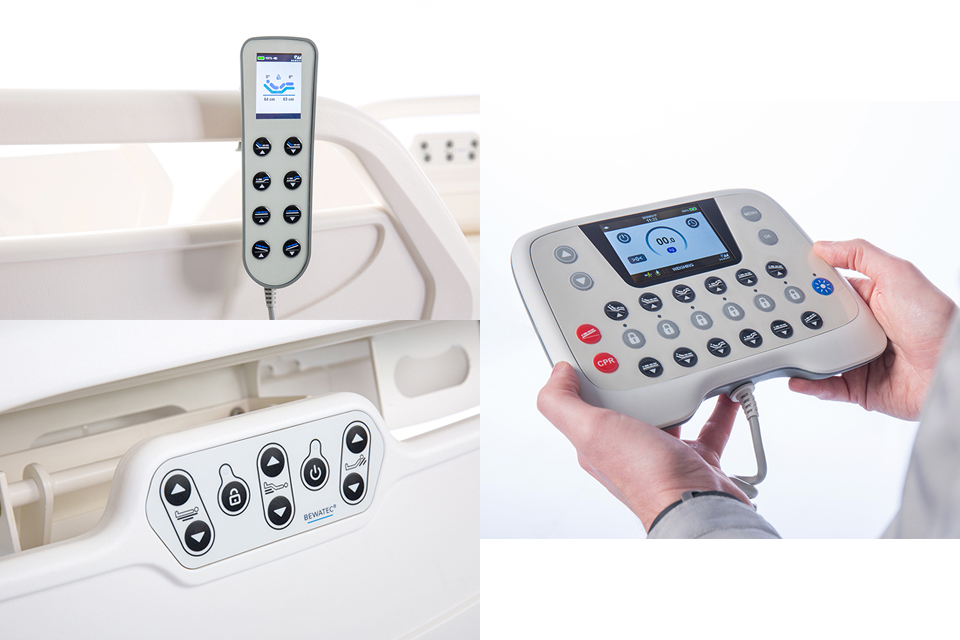

Manual controller, nurse panel and guardrail buttons, operation of graphical buttons is simple and intuitive, easy and direct access to nursing wherever the user is.

A5 Electric Medical Bed（Five-function） (8)

A5 Electric Medical Bed（Five-function） (5)

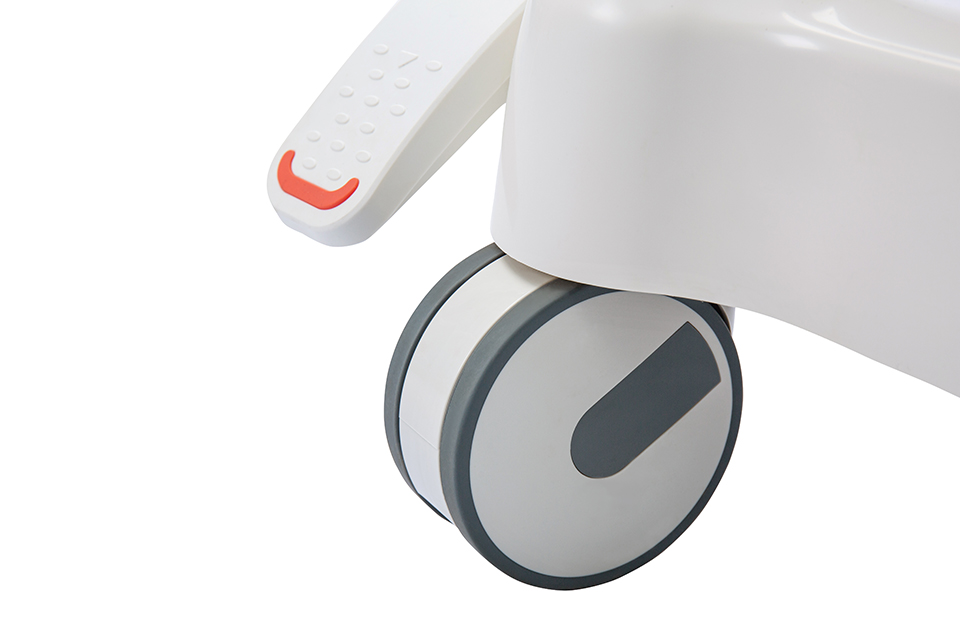

TPR double-sided central controlled casters, silent and wear-resistant, stable and reliable, and more convenient for transportation of the patient.

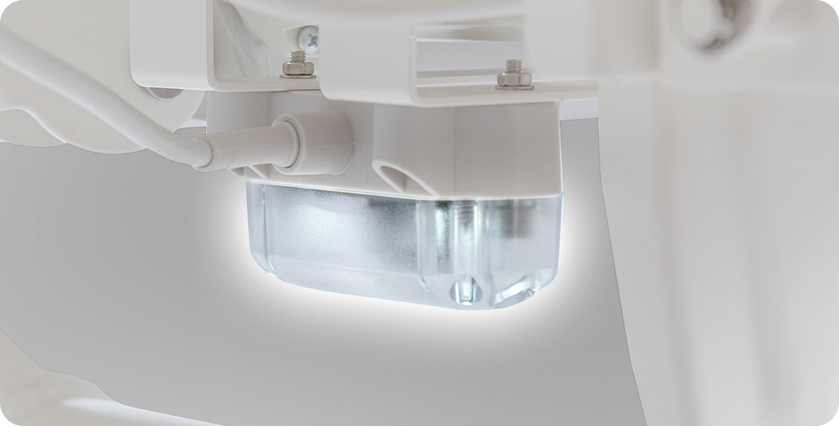

Smart LED improves visibility at night, guiding patients to get in and out of bed, and ensuring the safety.

A5 Electric Medical Bed（Five-function） (1)

A5 Electric Medical Bed（Five-function） (6)

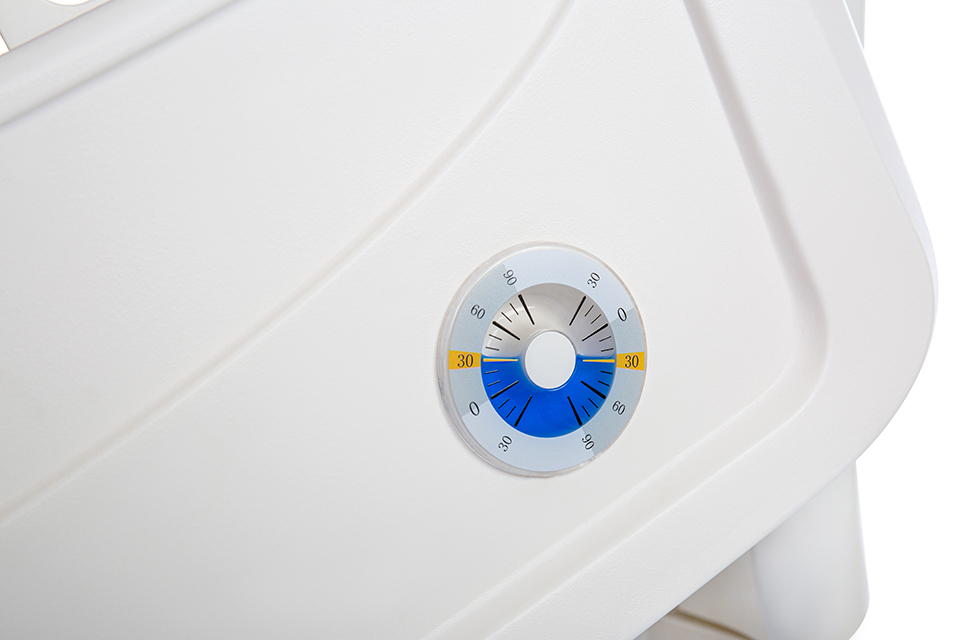

Fluid angular display is intuitive and easy to read, assisting nursing staffs to effectively implement normalized nursing.

Back retraction system automatically extends the bed panel where the patient’ pelvis is, which greatly reduces the pressure on the patient’s tissues.

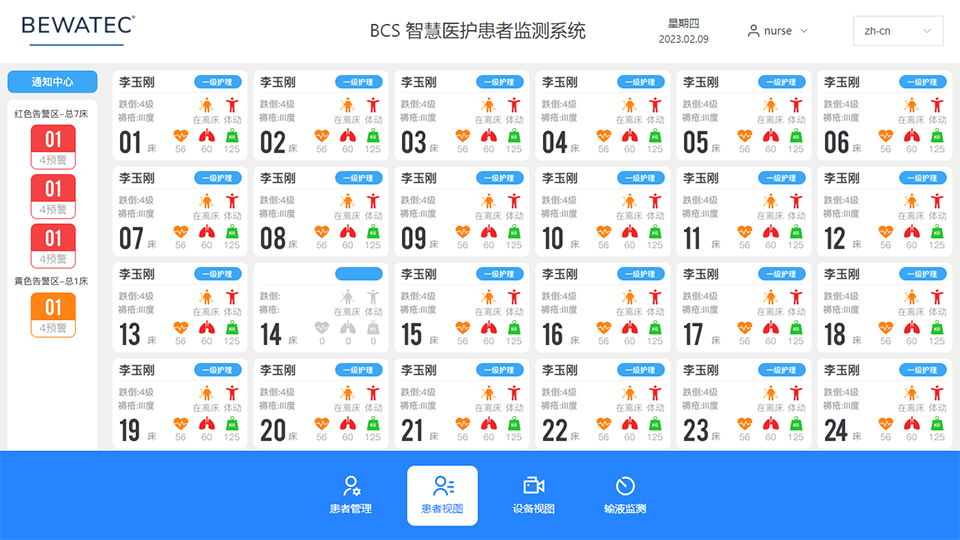

Digitalized sensing module performs real-time monitoring of patient’s occupancy of the bed, bed status, brakes, and sidebar status, and provides alarm analysis and an integrated finely managed smart ward.

Product Functions

i. Back Up/Down

ii. Leg Up/Down

iii. Bed Up/Down

iv.Tredelenburg Position

v.Reverse-tredelenburg Position

vi. Shock Position

vii. Cardiogical Chair Position

viii.CPR Electric CPR/ Mechanical CPR

ix. Quick-stop Function

Color Selection

Head panel and foot panel have variety of color choices.

Product Parameter

Bed width	850mm
Bed length	1950mm
Full width	1020mm
Full length	2190mm
Back tilt angle	0-70°±8°
Knee tilt angle	0-30°±8°
Height adjustment range	470~870mm±20mm
Tilt adjustment range	-12°～12°±2°
Safe working load	220KG

Configuration Details

Type	A522-1	A522-2	A522-3
Head Panel & Foot Panel	HDPE	HDPE	HDPE
Lying Surface	ABS	ABS	ABS
Siderail	HDPE	HDPE	HDPE
Auto-regression	●	●	●
Mechanical CPR	●	●	●
Drainage Hook	●	●	●
Drip Stand Holder	●	●	●
Bondage Ring/Plate	●	●	●
Mattress Retainer	●	●	●
Frame Cover	●	●	●
Built in Side Rail controller	○	●	●
Nurse Panel	○	○	●
Underbed Light	●	●	●
Digitalized Module	●	●	●
Networking	●	●	●
Caster	Double-sided Central Control	Double-sided Central Control(with Electricity Caster)	Double-sided Central Control(with Electricity Caster)
Hand Controller	Button	Silicone Button	LCD Button
Xray	Optional	Optional	Optional
Extension	Optional	Optional	Optional
Fifth Wheel	Optional	Optional	Optional
Table	Over Bed Table	Over Bed Table	Over Bed Table
Mattress	TPU Foam Mattress	TPU Foam Mattress	TPU Foam Mattress
